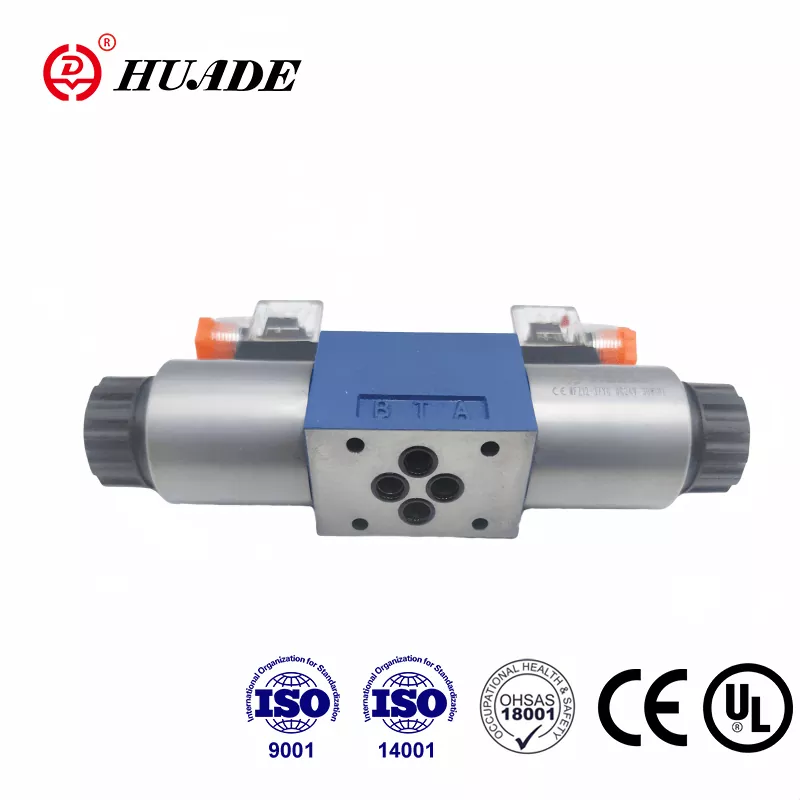

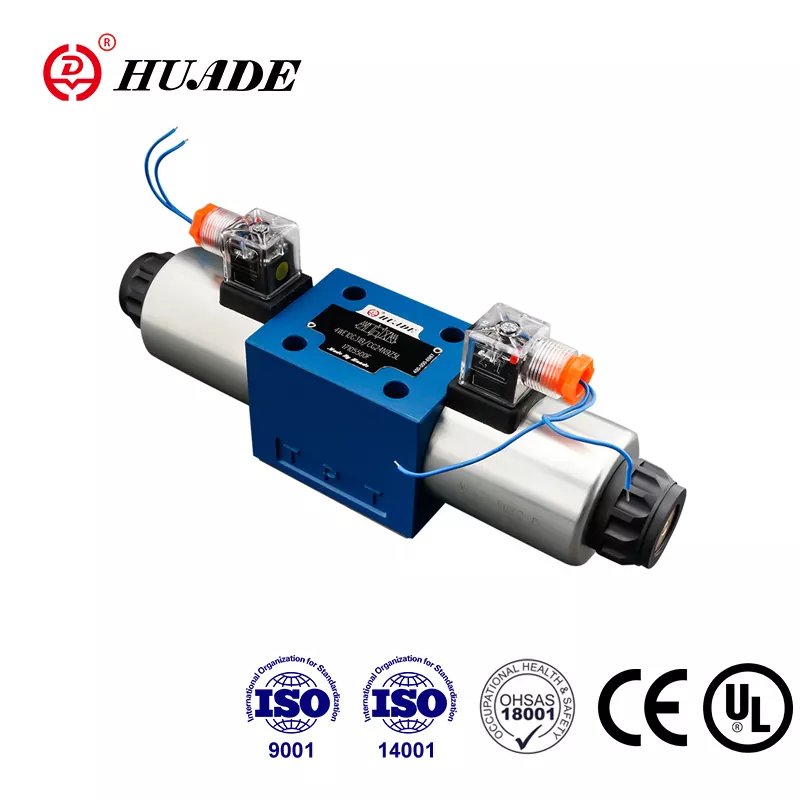

Huade Hydraulic 4WE10 series valve is a high-performance, solenoid-operated directional control valve designed for reliable fluid power control in medium- to high-pressure hydraulic systems. Building on 12 years of technical collaboration with global industry leaders like Rexroth, this series offers a cost-effective alternative without compromising quality. With a robust design and precise engineering, the directional control valve 4WE10 ensures smooth operation, durability, and compatibility with a wide range of hydraulic applications.
Product parameter of Directional Control Valve 4WE10
| Operating pressure max. | Ports A.B.P (MPa) | to 31.5 |
| Ports T (MPa) | 16 | |
| Flow max (L/min) | 120 | |
| Cross section (switching position 0): | With symbol Q approx.6 % of the nominal area With symbol W approx.3 % | |
| Pressure fluid | Mineral oils(for NBR seal) or phosphate ester(for FPM seal) | |
| Pressure fluid temperature range （℃） | -30～+80 | |
| Viscosity range (mm2/s) | 2.8~500 | |
| Weight (kg) | Valve with 1 solenoid | 5.1(DC), 4.3(AC) |
| Valve with 2 solenoids | 6.7(DC), 5.1(AC) | |
1. Product Features and Application
Features:
①Pressure Rating: Up to 31.5MPa
②Flow Capacity: Up to 120 L/min
③Spool Options: 4-way, 3-position
④Solenoid Options: AC/DC, wet-pin coil configurations
⑤Porting Pattern: ISO 4401 (DIN 24340) standard, interchangeable with major brands
⑥Seals: NBR or FPM options for different fluid compatibility
Application:
The 4WE10 series is widely used in industrial and mobile hydraulic systems,such as machine tools, construction equipment,agricultural machinery,material handling

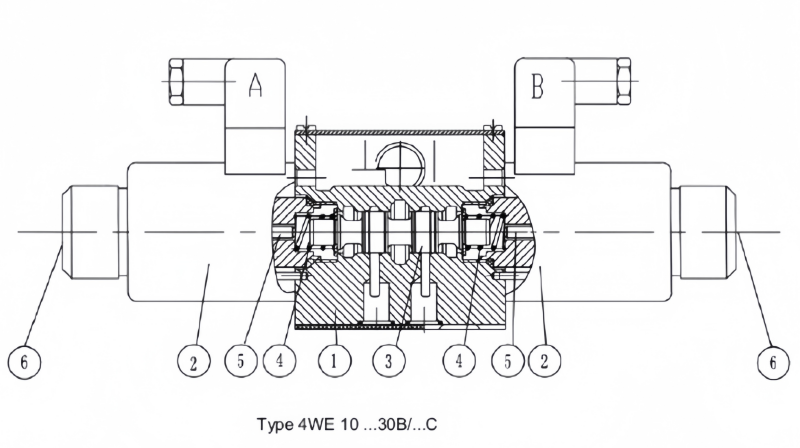

2. Functions,Section
4WE10 directional control valve is solenoid operated directional spool valve. It controls the start, stop and direction of a fluid.
Advantages Over Competitors
Cost Savings: Huade Hydraulic can help customers reduce costs by 20-30% while ensuring that the performance can match Rexroth’s.
Proven Reliability: Each 4WE10 directional control valve undergoes rigorous leakage, pressure peak before leaving the factory.
Easy Replacement: Huade Hydraulic' 4WE10 can be directly interchanged with Rexroth brand, with the same appearance and compatible interfaces, helping customers to minimize the transformation work
Why choose Huade?
Huade Hydraulic provides high-quality, affordable Rexroth brand replacement hydraulic valves with decades of professional experience. 4WE10 series directional control valves reflects our persistent pursuit of performance and reliability, and is an ideal choice for cost control or OEM replacement for your hydraulic system.
